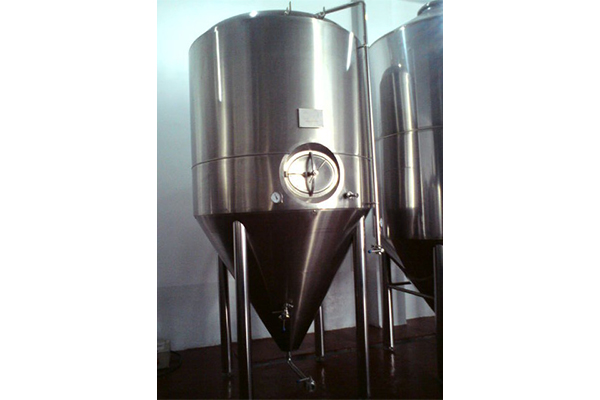

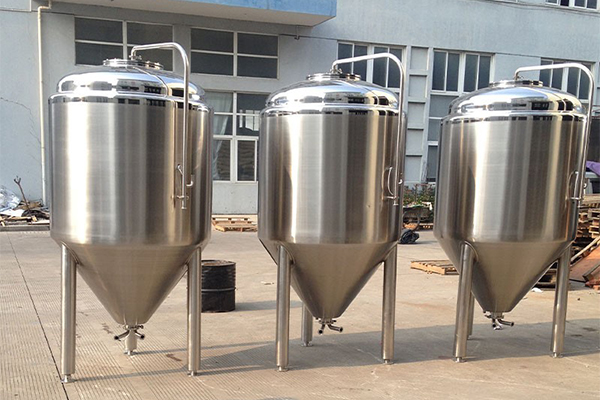

Fermentation Tank

PRODUCT DETAIL

Working Principle：

Fermentation tank is used to fermented the cold wort solution which removing the solidified substance by filter with the yeast together.

Standard configuration:

1) Material is SS304

2) Working volume from 1-250BBL

3) Vertical type ( horizontal type is Optional)

4) Top head with 25% extra capacity space

5) Dish top ,cylinder shell body ,60-70 degree con type bottom

6) Shell Side manhole ( top manhole is optional)

7) Double jacketed construction (single layer is optional)

8) Internal surface is 2B finish,outside shell surface is #4 finish

9) Dimple type jacket for Glycol cooling ,with50-80mm PUF insulation layer

10) With hop port at top head

Characteristic:

A. the equipment is made of copper or stainless steel, which is gorgeous and elegant.

B. It can brew various beer drinks such as black beer, yellow beer, red beer, fruit beer and gevas.

C. simple and flexible operation, low power consumption and small floor area.

D. the production environment is clean, pollution-free, and the wine is fragrant.

E. high degree of automation, even non brewing professionals can brew superior beer.

Fermentation Tank Accessories:

Sample Valve，Pressure relief/vacuum valve , Temp. sensor / thermometer , Rotating racking arm with butterfly valve，Bottom outlet with butterfly valve, CIP rotary spray ball and process pipeline.

Technology data specification for fermentation tank :

Capacity	Cylinder(ODxH)	OAH	Inner Thickness
7BBL	1000 x 1250mm	2530mm	3mm
10BBL	1150 x 1250mm	2670mm	3mm
15BBL	1250 x 1680mm	3250mm	3mm
20BBL	1400 x 1700mm	3400mm	3mm
30BBL	1650 x 1850mm	3740mm	3mm
40BBL	1750 x 2050mm	4040mm	3mm
50BBL	1750 x 2750mm	4770mm	3mm
60BBL	1150 x 1250mm	2670mm	3mm
80BBL	2100 x 2900mm	5300mm	3mm
100BBL	2200 x 3350mm	5850mm	3mm
