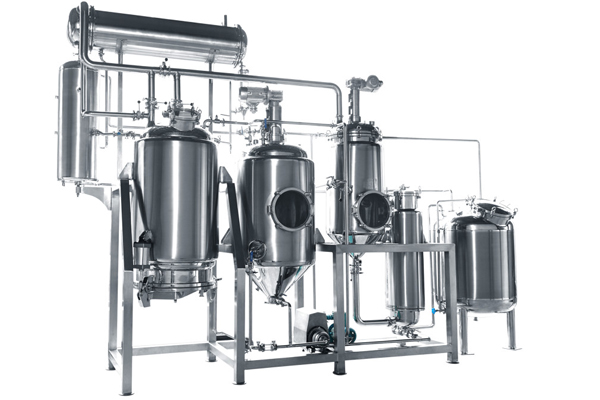

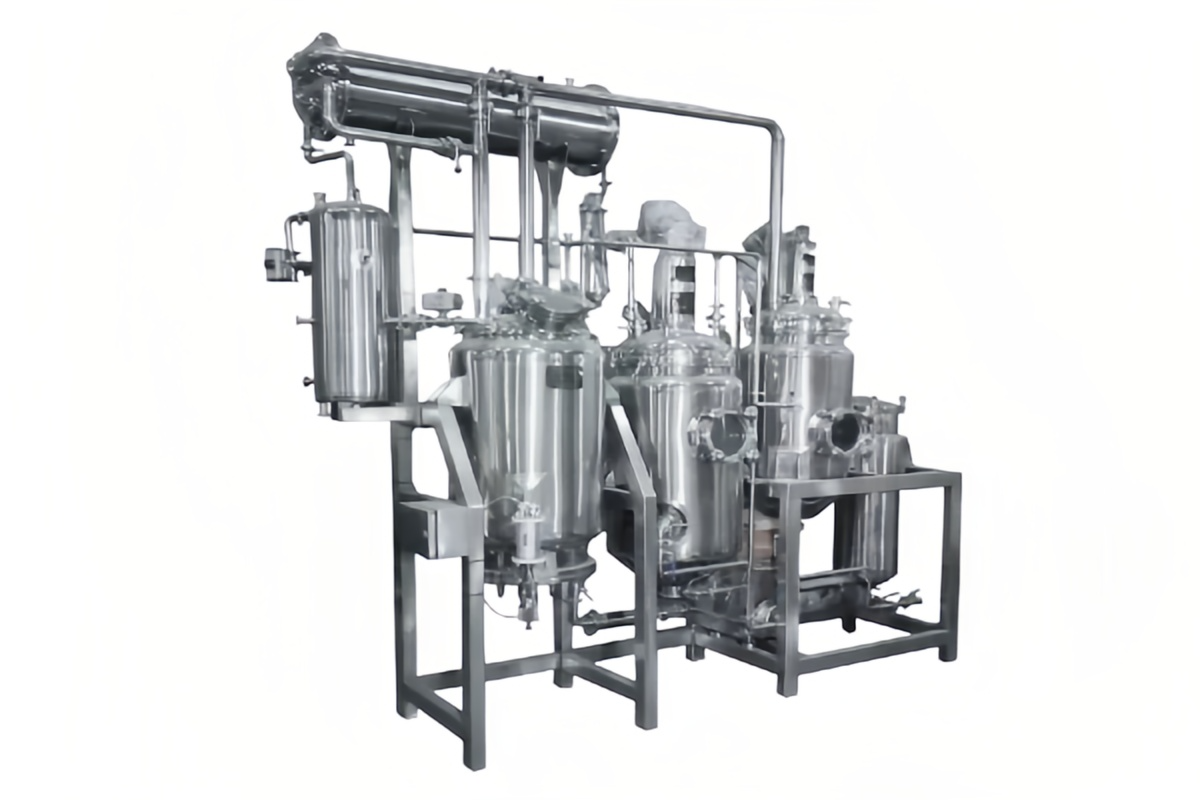

50–500L lab-scale multifunctional plant extraction and concentration machine, compact and easy to operate, widely used in labs and research institutions, attracting global attention.
PRODUCT DETAIL
Working scope:
It is used for active ingredient extraction and concentration like herbal leaf ,root,wood , stem,seed ,fruit ,flower ,seafood ,animal bone ,organ ,etc.so it is mainly used in the lab, University, research unit, pharmaceutical factory pilot plant to developed the new medicine and new production process before the commercial scale production and certificated.
Working methods :
Multifunctiona Lab Scale Mini Pilot Plant Herbal Extraction And Concentrator Machine can be used to the aromatic oil steam distillation,water based extract ,solvent based extract,soxhlet extract,thermal-reflux extract ,sediment purify process,solvent mixing process concentration &solvent recovery etc.functions.
Main components:
It is including the extractor tank ,condenser ,oil/water separator ,multifunctional tank ,single effect evaporator,transfer pump,vacuum pump ,pipeline ,support frame and control panel.
Main feature:
1.MOC with SS304 and SS316L ,which fits to the GMPs and FDA requirement .
2.Extractor tank volume ranges from 50L-500L .
3.It is suitable for different type of heating methods : steam ,electrical ,thermal oil .hot water etc.
4.The cooling medium can be cooling water, tap water and chilling water.
5. It is a compact system ,save the space,one key operation.
6.Inside platform and pipelines are connected,easy for installation at customer’s site.
7. It can be used manual operation or HMI/PLC operation.
HMI/PLC control functions:
1) extractor temperature control /PID display.
2) extracting time and extract cycle timing.
3) foam destroyer.
4) solvent volume display and control .
5) end product viscosity/density control .
6)etc as per client’s requirements.
MODEL Extractor Multifunctional tank Single -effect evaporator Tank Volume（L） Heating area（㎡） Jacket pressure（MPa） Shell pressure（MPa） Volume（L） Heat exchanger area（㎡） agitator Motor power （KW） Heating area （㎡） Condenser Cooling area （㎡） Agitator Motor power（KW） Vacuum pump power （KW） Transfer pump power （KW） Steam consumption（kg/h） Total motor power（KW） Cooling water consumption（T/h） Dimension （L*W*H） DNT-100 110 0.52 0.3 ATM 130 0.7 0.37 0.85 2.0 0.37 1.5 0.37 100 2.6 2 2.45*0.8*2.35 DNT-200 220 0.96 0.3 ATM 230 1.5 0.75 1.50 4.0 0.37 2.2 0.37 150 3.7 4 2.8*0.975*2.5 DNT-300 350 1.12 0.3 ATM 350 2.0 0.75 2.30 5.0 0.37 2.2 0.37 200 3.7 5 3.2*1.05*2.6 DNT-500 620 1.5 0.3 ATM 620 2.9 0.75 3.20 10 0.37 3.0 0.37 250 4.5 10 3.5*1.3*3.05
