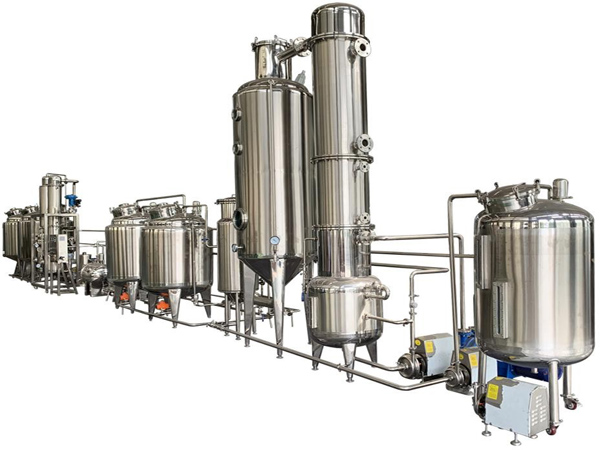

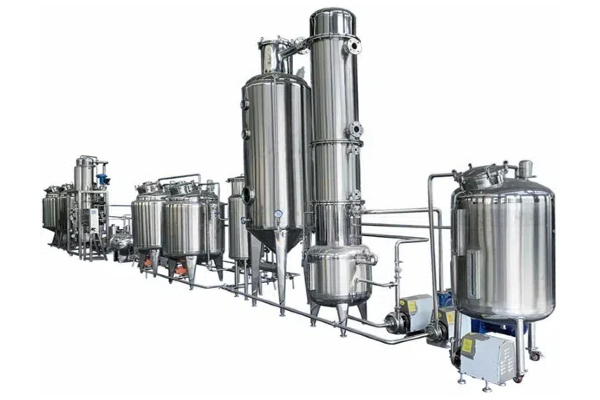

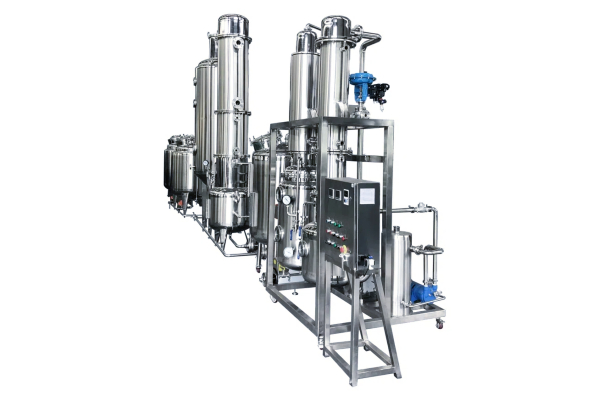

Low Temperature organic solvent extraction line for CBD Oil

Low Temperature ethanal extraction line for CBD Oil is popular methods in whole world.Joston provides most of the equipments from grinding to final drying

Inquire Now Contact us

PRODUCT DETAIL

The content of CBD oil in all parts of natural biomass /cannibis from its flowers, leaves, fine stems and thick stems, our developed hemp oil extraction line is adapt the new technology as low temperature to extract the CBD oil.

The main equipment of CBD Oil extraction or process line :

(1)hemp grind machine : which is used to cut the hemp leaf ,stem or flower into small particle.then packed the small particle hemp raw material into small bags.

(2)storage tank for the ethanol solvent : the storage tank with jacketed to cool the ethanol into low temperature ,it is usual to reach as -60 degree celius.

(3)centrifuge machine :feed the grind hemp raw material and solvent together inside chamber to spin.

(4)filter system : the the CBD oil & ethanol extractor solution will be filter ,the particle and the Chlorophyll color will be removed the extractor solution.

(5)evaporator machine :which is used to evaporate the ethanol from the extractor solution ,which is used FFE or single effect evaporator .

(6)decarbon reactor.

(7)molecular distill system : which is used to separate the CBD oil with other by-product to get high purify CBD oil products.

(8)resin column purify machine.

(9)crystallizer tank.

(10)cooling system : low temperature Screw chiller to cooling the ethanol into low temperature.

(11)steam system : it is used to afford the steam energy for the evaporator machine .

(12)pipeline for the whole system .

(13)control system :control the whole system running ,which can make as manual operation and PLC/HMI operation .

无标题文档

Centrifuge Technical Parameters

MODEL	Basket Dia(MM)	Volume(L)	Max (Load)(KGS)	Speed(rpm)	G.force	Power(kw)	Weight(kgs)	overall size
CD-10	300	5	10	2500	1050	1.1	180	890mm600mm500mm
CD-25	450	20	25	1900	910	1.5	250	980mm650mm870mm
CD-50	600	40	50	1500	756	3	800	1300mm880mm900mm
CD-135	800	100	135	1200	645	5.5	1300	1800mm1200mm1140mm
CD-135-NA	800	100	135	1500	1008	7.5	1300	1800mm1200mm1140mm
CD-200	1000	150	200	1000	560	7.5	2000	2050mm1500mm1220mm
CD-200-NA	1000	150	200	1200	706	11	2000	2050mm1500mm1220mm
CD-300	1200	250	300	800	431	11	2500	2350mm1650mm1370mm
