Reactor System

PRODUCT DETAIL

Reactor system is a closed vessel, which is used to perform a chemical reaction, distillation, crystallization, mixing, and isolation of materials etc. in API manufacturing facility.

Reactor Tank is specially designed equipment with agitator and gearbox with flameproof electrical motor. Agitator is used for proper mixing, eddy formation, Vortex formation as per requirement. Agitator types are decided based on process requirement.

Reactor Tank jacket is used for maintaining reaction conditions by providing utilities like steam, chilled water, cooling water, chilled brine and hot water. Solids are charged into reactor through Manhole/ Nozzles manually and liquids are charged in to reactor by liquid transfer pipelines connected to reactor or manually through manhole.

Reactor Tank Solution or slurry is discharged from the reactor by nitrogen pressure or by pump, through bottom discharge valve.

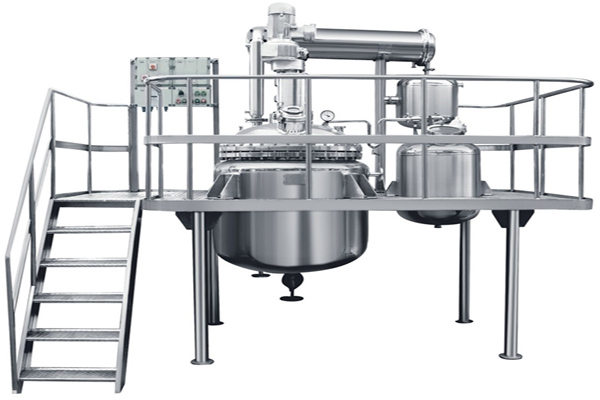

Reactor system including reaction tank ,condenser ,sub-cooler ,collection tank and pipeline .

Technology data :

无标题文档

Item	Technology Specification
Working volume	20-30000L
Material	SS304,SS316L,F40 coated SS material and Glass Lined etc
Shell working pressure :MPa	Vacuum to URS requirement data
Jacket working pressure :MPa	Depend on the client’s URS
Jacket structure	Single jacket type ,limpet coil jacket type ,dimple jacket ,inside coil pipe etc
Jacket medium	Heating by steam,hot water &hot oil or electrical heating etc; Cooling by cooling water or chiller etc.
Agitator type	Propeller type agitator ,anchor type agitator ,scraper type agitator ,high shear emulsifying agitator etc.
CIP/SIP	Tank with pipeline can be online CIP/SIP
Condenser type	Plate type heat exchanger ,shell&tube type condenser ,weld type Plate heat exchanger etc
Condenser cooling area	Depend on the client’s URS
