PRODUCT DETAIL
Technical parameter:
|
Specification |
1T-500T,
055KW-75KW |
|
Materials |
SUS304 SUS316L (In the selection of
materials, all parts that contact the materials such as pump body, pump cover and
Impeller are made of SUS316L or SUS304 stainless steel.) |
|
Standards |
DIN, SMS |
|
Impeller |
Open impeller,
without dead corner of sanitation |
|
Work Condition |

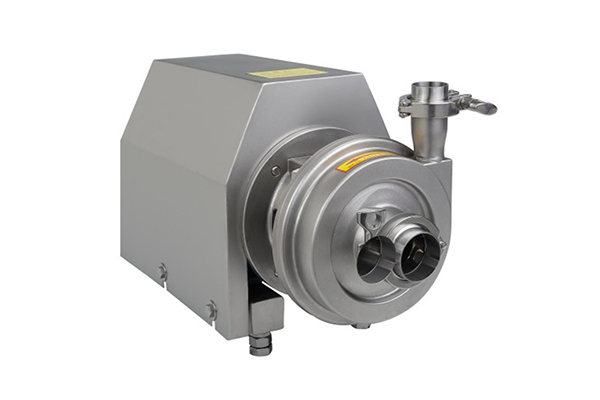

The sanitary
centrifugal pump adopts horizontal conveying with high and
low liquid levels. It is not of self-priming type. (Please select the self-priming
pump for self-priming type.) |
|
Surface Treatment |
The liquid receiving
part is subject to polishing treatment and other parts matte or
sandblasting treatment. |
|
Maximum inlet
pressure |
0.5MPa |
|
Temperature range |
-10°C to +
140°C(EPDM) |
|
Washable mechanical
seal |
Water
pressure: Max. 0.1MPa Water volume:
0.25-0.5L/min |
Motor:
1、Depending on the configuration, the pump
mainly adopts "ABB'' brand high-efficiency M2BAX three-phase AC
motor. The pump is designed and manufactured according to IEC60034.IE60072,conforming
to CE marking requirements.
2、 The
explosion-proof motor is available to meet the needs in different applications.
3、 With excellent
electric performance, low noise and low vibration, the motor is designed
to have standard protection grade of IP55 and insulation grade of grade F.
4、 Frequency: 50Hz/60Hz
5、 Woking mode:
continuous (SI)
6、 Rotation
speed: The standard rotation speed of the pump is 2900r/min.
Technology data
Specification:
|
Model |
Flow
capacity (t/h） |
Lift Head(m) |
Motor power(kw) |
inlet/outlet (mm) |
|
JSL-0.55-3-14 |
3 |
14 |
0.55 |
38/32 |
|
JSL-0.75-3-16 |
3 |
16 |
0.75 |
38/32 |
|
JSL-1.1-4-18 |
4 |
18 |
1.1 |
38/38 |
|
JSL-1.5-5-18 |
5 |
24 |
1.5 |
38/38 |
|
JSL-2.2-10-24 |
10 |
24 |
2.2 |
51/38 |
|
JSL-3-15-24 |
15 |
24 |
3 |
51/51 |
|
JSL-4-20-24 |
20 |
24 |
4 |
51/51 |
|
JSL-5.5-20-36- |
20 |
36 |
5.5 |
51/51 |
|
JSL-7.5-30-36 |
30 |
36 |
7.5 |
63/51 |
|
JSL-11-50-40 |
50 |
40 |
11 |
76/63 |
|
JSL-15-60-40 |
60 |
40 |
15 |
89/76 |
