Solvent Recovery Tower

PRODUCT DETAIL

Usage：

This machine is suitable for dilute alcohol recovery in pharmaceutical,food, light industry, chemical industry and other industries. It is also suitable for distillation of methanol and other coal-soluble products.

Working Principle：

Solvent recovery tower is based on the principle that the boiling point of distilled solvent is lower than the boiling point of other liquids.

With a temperature slightly higher than the boiling point of distilled solvent, the dilute raw material solution to be recovered is heated and vaporized. After the tower body ripple packing material is refined, pure distilled solvent gas is precipitated, and the concentration of distilled solution is increased to achieve the purpose of solvent recovery. Our solvent recovery tower can distill alcohol output reach to 93-95% ,the alcohol in waste residue less than 1%.

Machine composite：

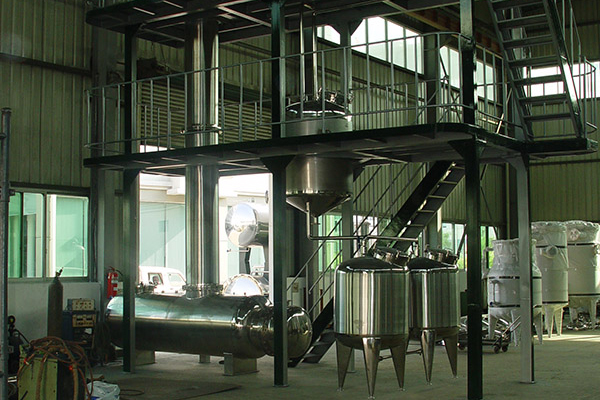

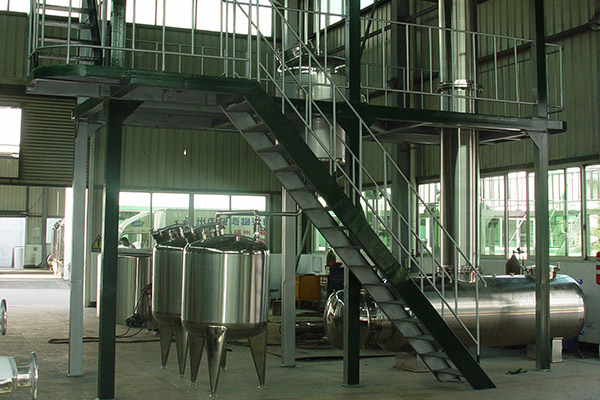

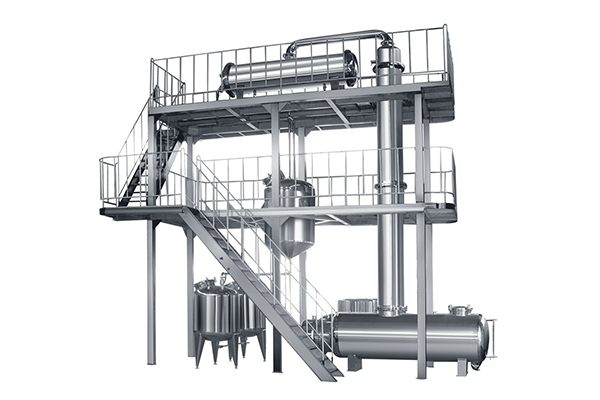

The Solvent recovery tower equipment includes re-boiler, tower column, condenser , sub-cooler, solvent collection tank and pipeline.

Model Item	JH200	JH300	JH400	JH500	JH600	JH800
Tower Column diameter mm	200	300	400	500	600	800
Tower height mm	7200	7200	7200	7200	7200	9000
Re-boiling tank volume L	600	1000	1500	2000	3000	4000
Feeding concentration for alcohol	30%-50%
Output concentration for alcohol	93%-95%
Output capacity for alcohol kg/h	60-80	90-100	120-150	200-300	350-400	550-600
Dimension M	2.5X0.8X10	2.6X0.9X10	2.8X1.0X11	3.0X1.0X11	3.5X1.4X12	4.2X1.714
