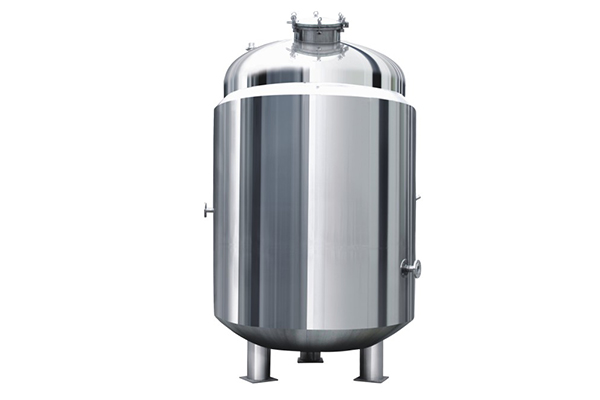

Stainless Steel WFI Tank

Usage：

WFI Storage tank is used to storage the WFI water ( injection water ).

Machine composite：

WFI Storage tank is made of stainless steel material , which is divided into tank shell , manhole, tank CIP spray ball, ,vent filter .feed port and discharge port etc. The tank shell is polished inside surface as Ra<0.45um, and outside surface as Ra<0.8um. The liquid level gauge is used to observe the storage capacity in the tank. The tank CIP spray ball is used to clean the inside shell of tank. The manhole can be used for maintenance, plus two feed inlets, which can be connected by pipes at the same time. There is a water outlet below, which can be installed with a valve, and the water can be discharged manually, and it will be closed after the water is discharged.

Characteristic：

1) vertical type and horizontal type .

2) single layer ,double jacketed layers.

3) Quick open type manhole.

4) 360 degree CIP spray ball ,CIP/SIP online.

5) level sensor to indicate the inside WFI level .

6) Temperature sensor (gauge ) to indicator the temperature data.

7) Material is SS316L.

8) Volume from 50L --100000L.
