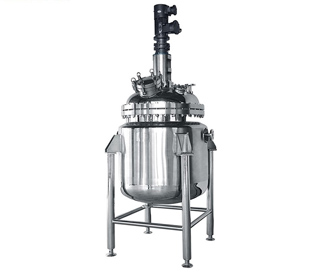

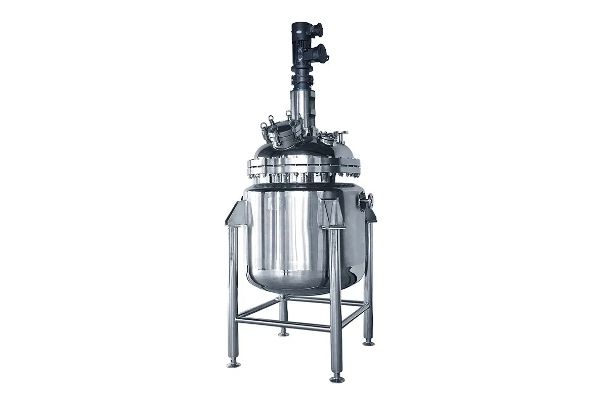

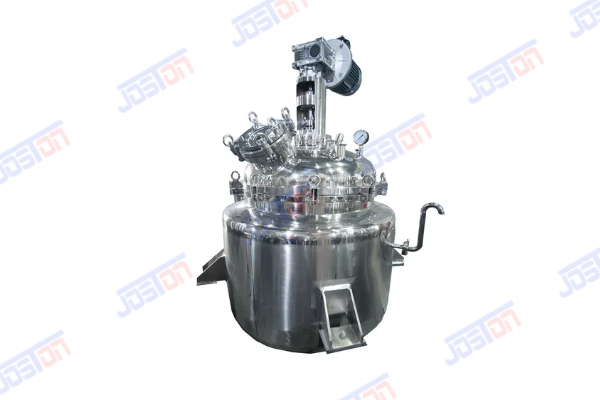

Reactors

mainly forchemical reaction, distillation, crystallization, mixing, and isolation of materials ,with wet parts SS,DSS,PTFE coated,Glass lined ,Titanium etc

Inquire Now Contact us

PRODUCT DETAIL

Usage：

Reactor is a closed vessel, which is used to perform a chemical reaction, distillation, crystallization, mixing, and isolation of materials etc.

Working Principle：

Reactor is specially designed equipment with agitator and gearbox with flameproof electrical motor. Agitator is used for proper mixing, eddy formation, Vortex formation as per requirement. Agitator types are decided based on process requirement.

Reactor Single full Jacket/impet coil jacket is used for maintaining reaction conditions by providing utilities like steam, chilled water, cooling water, chilled brine and hot water. Solids are charged into reactor through Manhole/ Nozzles manually and liquids are charged in to reactor by liquid transfer pipelines connected to reactor or manually through manhole.

Reactor Solution or slurry is discharged from the reactor by nitrogen pressure or by pump, through bottom discharge valve.

Machine composite：

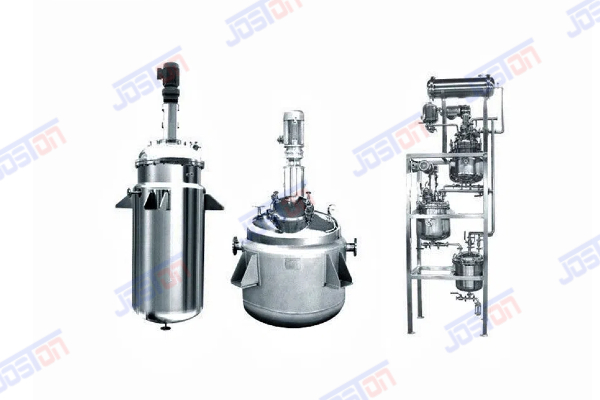

Reactor system equipped with reaction tank ,condenser ,sub-cooler ,collection tank and pipeline .

Technical Description:

Item	Parameters and configuration select
Working volume	20-30000L
Material	SS304,SS316L,F40 coated SS material and Glass Lined etc
Jacket structure	Single jacket type ,limpet coil jacket type ,dimple jacket ,inside coil pipe etc
Jacket medium	Heating by steam,hot water &hot oil or electrical heating etc; Cooling by cooling water or chiller etc.
Agitator type	Propeller type agitator ,anchor type agitator ,scraper type agitator ,high shear emulsifying agitator etc.
CIP/SIP	Tank with pipeline can be online CIP/SIP
