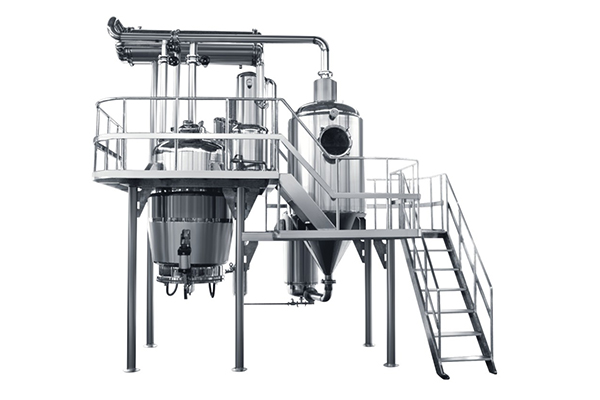

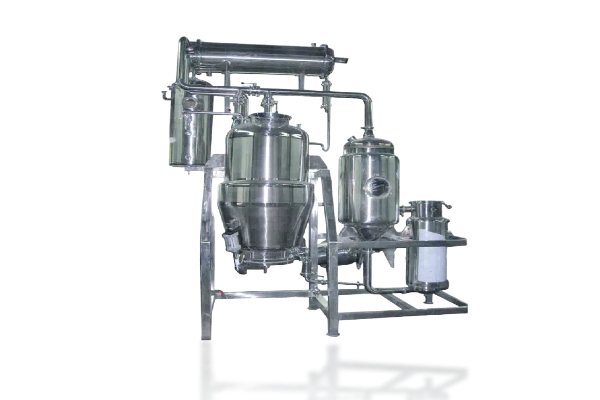

Thermal Reflux Extractor And Concentrator

1.Compact structure to save space 2.Higher extraction efficiency 3.Solvent and time saving 4.Low steam consumption 5.Can automatically operate

Inquire Now Contact us

PRODUCT DETAIL

Usage：

Multifunctional thermal reflux extractor and concentrator machine is applicable to the extraction and concentration of Chinese herbal medicine and natural products (water and organic solvent) and the recovery of volatile aromatic oil, with the concentration proportion of 1.1-1.38.

Multifunctional thermal reflux extractor and concentrator machine can fit the processes of extractor & concentrator in atmospheric pressure ;extractor in atmospheric pressure& concentrator in vacuum pressure ;extractor &concentrator in vacuum pressure ;steam distill volatile oil .especially for the water based and solvent extractor etc.process .

Working Principle：

The extractor solution outlet from the bottom of the extractor tank to the single effect concentrator to evaporate, and the evaporated solvent condenser then reflux back to the extractor tank as the fresh solvent . The fresh solvent mixture with the solution completely and evaporate again, till to extractor all the medicine from the raw material herbs .

Machine composite and Characteristic:

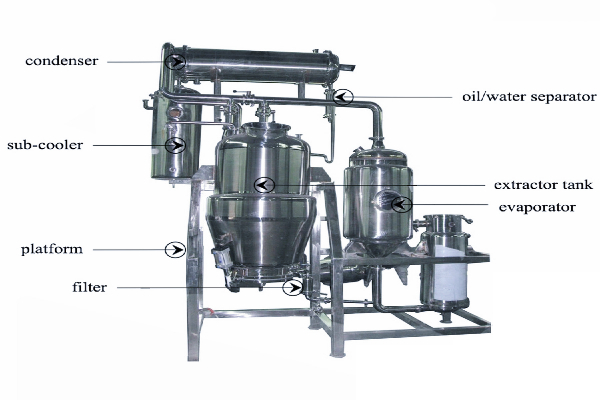

Multifunctional thermal reflux extractor and concentrator machine including extractor tank, single effect concentrator，condenser, oil/water separator,water(solvent) automatic drain system.pipeline,platform and control panel.

Machine Operation Mode:

Manual operation and PLC/HMI automatic operation.

Multifunctional thermal reflux extractor and concentrator machine Technology data Specification:

Model Item	RHL—1.0		RHL—2.0		RHL—3.0		RHL—6.0
	extractor	concentrator	extractor	concentrator	extractor	concentrator	extractor	concentrator
Steam pressure: MPa	0.3	0.2	0.3	0.2	0.3	0.2	0.3	0.2
Working pressure:MPa	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084
Jacket temperature : ℃	142	132	142	132	142	132	142	132
Working temperature ℃	≤100	60	≤100	60	≤100	60	≤100	60
Evaporator capacity :KG/H	500		800		1000		2000
Heating area: m²	6．2		9.8		12.2		25
Condenser area: m²	21		30		44		82
Steam consumption:kg/h @3bar	600		950		1200		2500
Cooling water consumption:kg/h Inlet temperature is 25℃,outlet temperature is 32℃	25		35		50		90
Dimension （L×W×H）	4000mm×1800mm×4600mm		4500mm×2200mm×5900mm		5200mm×2400mm×7250mm		6600mm×2800mm×7550mm
