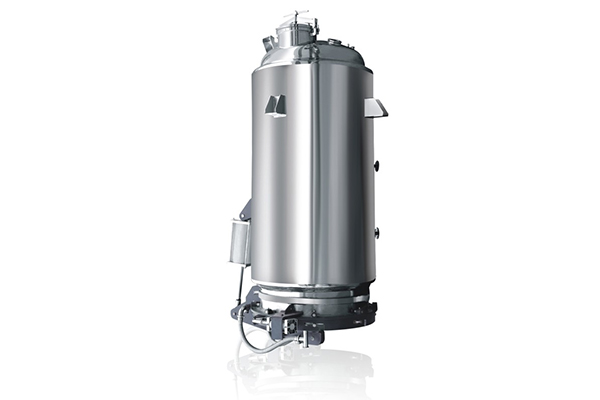

Multifunctional Extractor Machine

Multifunctional extractor tank is common used for different processing method,with optinal configurations,it can carry out high extraction rate and convenient operation.

Inquire Now Contact us

PRODUCT DETAIL

Usage：

Multifunctional extractor machine is widely used the solution( water /solvent ) to extract the active ingredient from the different raw material ,like Garlic, black pepper, goji berry, ginseng, turmeric, sweet wormwood, jujube, stevia, seaweed, cinnamon, shiitake mushroom, tea leaves, eucalyptus leaves, chili pepper, mint, rosemary, rose, lemon,hemp/cannabis,kratom etc.

Multifunctional extractor tank is suitable for the operation of vacuum pressure，atmospheric pressure, low pressure for inside shell.

Multifunctional extractor tank is suitable for the different heating medium like steam ,electrical heating ,thermal oil ,hot water for jacket.

Multifunctional extractor machine including the following unit : extractor tank ,condenser ,sub-cooler ,oil/water separator .filter ,pump and pipeline.

Optional Functions For Multifunctional extractor tank:

1.extractor tank equipped with agitator.

2.Special side discharge in the shell to avoid the fine raw material block the solution outlet.

3.Bottom discharge gate equipped steam heating coil to keep the extractor tank bottom uniform heating.

Technical parameters:

Model/Item	TQ-0.5	TQ-1.0	TQ-2.0	TQ-3.0	TQ-6.0	TQ-10.0
Total Volume Capacity（L） Work Volume Capacity（L）	570 500	1200 1000	2300 2000	3200 3000	6700 6000	11000 10000
Design pressure inside tank（MPa）	-0.1/0.09
Design pressure in jacket（MPa）	0.33
Compressed air pressure（MPa）	0.6—0.7
Charging manhole diameter（mm）	400	400	400	400	500	500
Condenser cooling area（M²）	3	4.5	5.5	6.5	9.5	15
Sub-cooler cooling area（M²）	0.5	0.5	1.0	1.2	2.0	3.0
Filter area :m²	0.2	0.2	0.25	0.25	0.3	0.5
Steam consumption (kg/h)@2bar	180	250	300	350	650	850
Cooling water consumption :t/h @inlet temperature 25℃,outlet temperature 32 ℃	4	5	7	8	12	20
