It is continuous and full automatic operation machine with big capacity
PRODUCT DETAIL
The horizontal decanter centrifuge/tricanter centrifuge is used for continuous separation of the materials in the suspension with different densities, by the principle of centrifugal settling. It has the properties below: It is widely used in chemical, light industry, food, paper making, mining, and other industrial fields. Suitable for the liquid-solid separation of suspension with solid weight percentage ≤ 10% (or after 24 hours sedimentation under natural force, volume percentage ≤ 50%), solid particle size ≥ 0.005~2mm, specific gravity difference ≥ 0.05g/cm 3. It can realize effective dewatering treatment for various materials, such as fruit juice, herbal extraction, soybean protein, paper pulp, vegetable oil, Kaolin, white clay, etc.
1.Solid Liquid 2phase Decanter centrifuge(2phase decanter centrifuge)
For natural plant extraction stage,after extraction,it is used for solid liquid separation to get the pure extraction liquid for concentration.

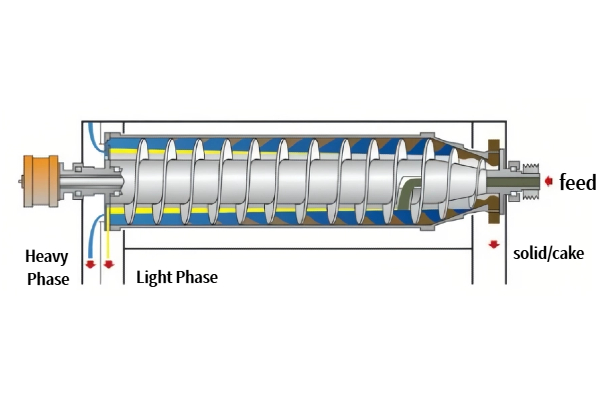

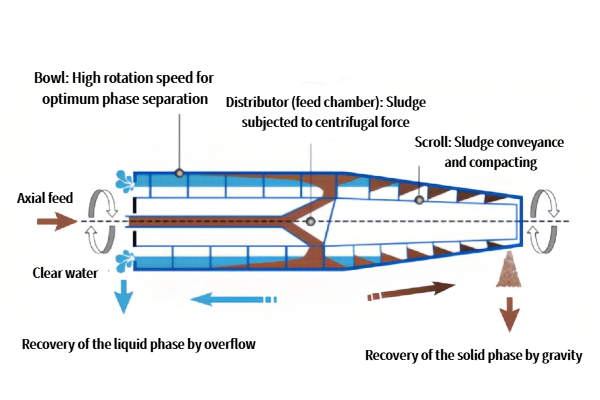

Structural diagram
Technical parameters
Model Diameter(mm) Speed(rpm) Length(mm) G-force Capacity(m3/h) Main motor Power(kw) Assistant motor power(kw) Weight(kg) Overall Size(L*W*H)(mm) LW355*860 355 4000 860 3175 1~10 18.5 7.5 2035 2765*920*1060 LW355*1160 355 4000 1160 3175 1~15 18.5 7.5 2122 3065*920*1060 LW355*1460 355 4000 1460 3175 1~25 22 7.5 2222 3365*920*1060 LW420*1450 420 3000 1450 2113 10~30 55 15 4600 4080*1100*1420 LW420*1680 420 3600 1680 3042 2~35 22 7.5 2230 1591*2285*3331 LW450*2000 450 3300 2000 2739 4~50 45 11 3655 1960*2660*4000 LW500*2000 500 3200 2000 2860 5~45 55 11 4213 1938*2620*4489 LW540*2000 540 2800 2000 2366 5~50 55 15 5290 1902*2590*4587
2.Liquid liquid solid Tricanter centrifuge(three phase decanter centrifuge)

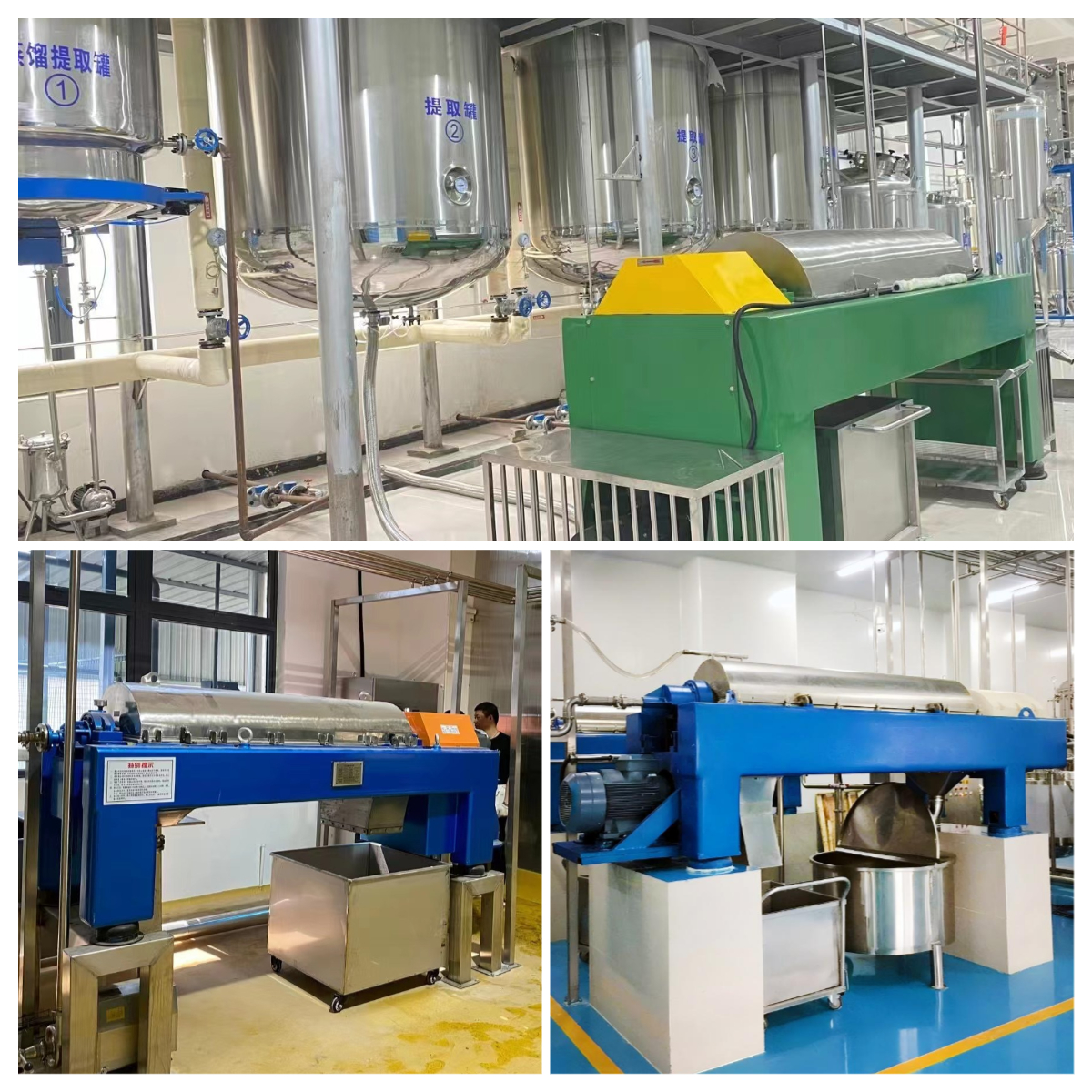

Working in site
