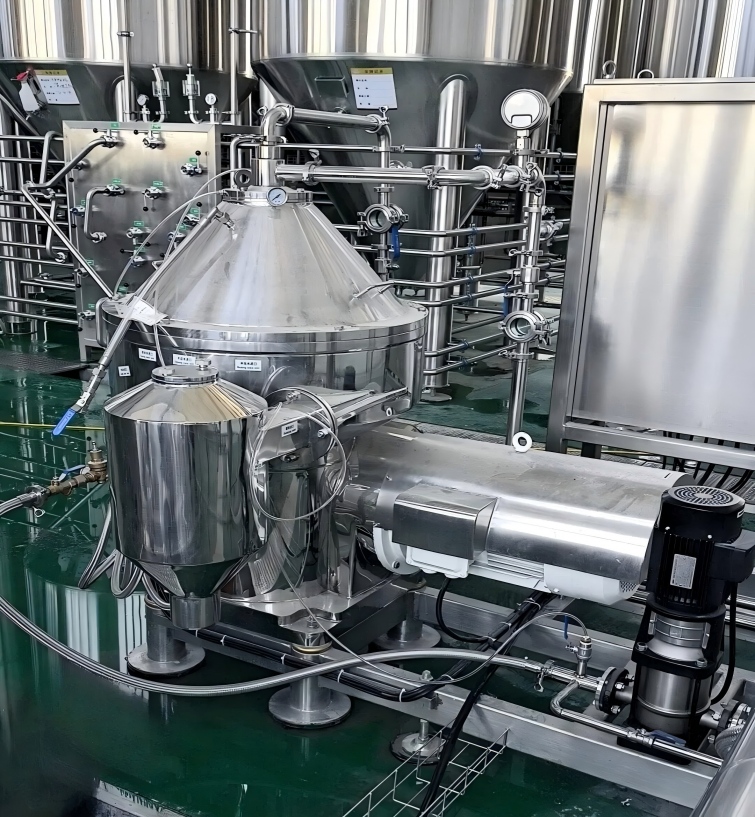

Craft Beer Disc Separator

craft beer disc separator is widely used in the modern process for fermented craft beer.the largest capacity can attain to 20-30TPH,full of automatic operation

PRODUCT DETAIL

Brief introduction:
The fermented craft beer contains a large amount of yeast (about 30 million/ml), which is traditionally naturally settled, has a long production cycle, and is prone to missing the optimal flavor period of the beer. The craft beer separator can quickly and effectively remove yeast and other solid particles, while retaining the original flavor and aroma of beer. It can significantly shorten production time, improve labor productivity and yield, and increase economic benefits. And it can ensure the extremely low dissolved oxygen value during the centrifugation process, which is the core requirement of beer. After centrifugation, the oxygen increase is less than 5ppb.it is including pressure retaining structure
Centrifugal oxygenation *: This data is based on the carbon dioxide content of the fermentation liquid to be centrifugal above 0.45%, the purity of carbon dioxide used in the gas seal above 99.99%.

Advantags:

Technical parameters:
NOModelWater throughoutActual capacity Motor power
1RPDB205VC-01B5T/h2-4T/h7.5kw
2HGDB209VC-03B10T/h5-8T/h15kw
3RPDB313VC-03F20T/h9-15T/h30kw
4KSDB417VC-0150T/h20-30T/h55kw
The design, manufacture and testing of the separator shall be carried out in accordance with the requirements of ISO9001:2010 quality management system, and the implementation standards are as follows:
GB19814-2005 Safety Requirements for Separators
GB / T4774-2004 Separation of Mechanical Terms
JB / T8103-2008 Disc Separator-Part 1: General Technical Conditions
GB / T10894-2004 Test Method for Separating Mechanical Noise
GB / T10895-2004 Test Method for Mechanical Vibration of Centrifuge Separator
JB / T10411-2004-Ultrasonic Testing and Quality Rating of Austenitic Steel Forgings for Centrifuge and Separator
GB / T1220-2007 "Stainless Steel Bar"
JB / T9095-2008 Technical Specification for Conventional Nondestructive Detection of Forging Welds of Centrifuge and Separator
JB/T4730.4-2005 Nondestructive Testing of pressure equipment- -Part 4: Magnetic powder testing
JB/T4730.3-2005 Nondestructive Testing of Pressure Equipment- -Part 3: Ultrasonic Testing
GB / T5745-2010 Marine Disc Separator
