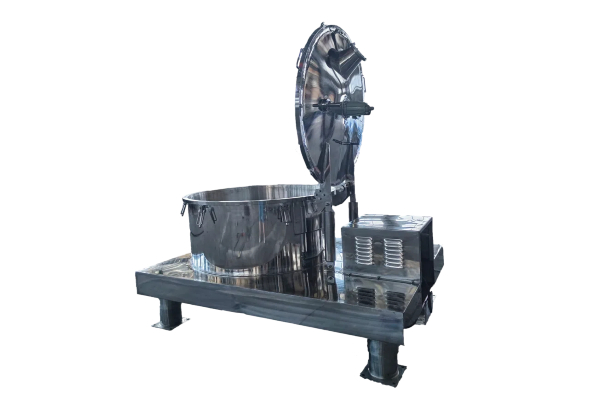

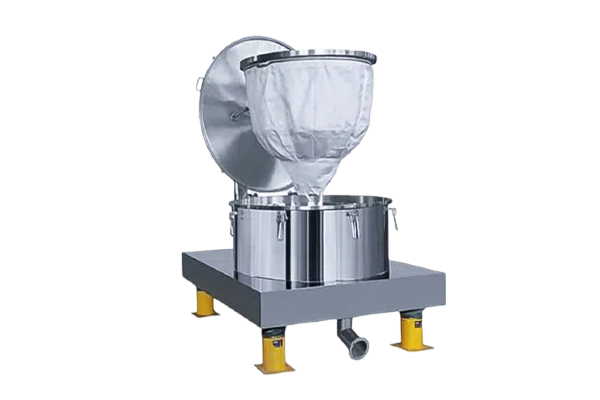

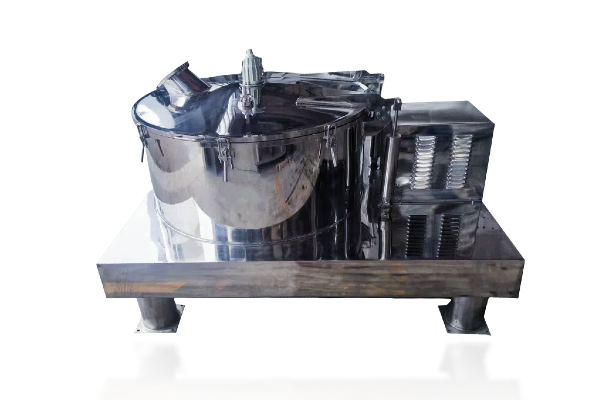

Manual top-discharge centrifuge for efficient solid-liquid separation, suitable for viscous, fine, toxic, or flammable materials. Available in SS304, SS316L, titanium, or PTFE-coated parts with variable speed control.
PRODUCT DETAIL
| Type | Basket | |||||||
| Diameter(mm) | Volume(L) | Capacity(kg) | Speed(rpm) | G-force | Power(kw) | Weight(kg) | Overall size(L × W × H)(mm) | |
| JPSB300 | 300 | 5 | 10 | 2500 | 1050 | 1.1 | 180 | 890*600*500 |
| JPSB450 | 450 | 20 | 25 | 1900 | 910 | 1.5 | 250 | 980*650*870 |
| JPSB600 | 600 | 40 | 50 | 1500 | 756 | 3 | 800 | 1300*880*900 |
| JPSB800 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 1300 | 1800*1200*1140 |
| JPSB1000 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2000 | 2050*1500*1120 |
| JPSB1200 | 1200 | 250 | 300 | 800 | 431 | 11 | 2500 | 2350*1650*1370 |
| Model | Drum | Separation factor | Power | Opening limit height | Overall dimensions | Machine weight | |||
| Diameter | Working volume | Loading limit | Higher RPM | ||||||
| JPD800 | 800 | 115 | 115 | 1500 | 1008 | 7.5 | 2280 | 1800*1050*1140 | 1800 |
| JPD1000 | 1000 | 170 | 230 | 1200 | 806 | 11 | 2590 | 2030*1300*1220 | 2800 |
| JPD1200 | 1200 | 250 | 340 | 800 | 431 | 11 | 2850 | 2300*1500*1350 | 3200 |
| JPD1250 | 1250 | 280 | 400 | 950 | 631 | 18.5 | 2580 | 2350*1500*1370 | 4200 |
| JPD1500 | 1500 | 500 | 650 | 850 | 607 | 30 | 3400 | 2900*1900*1575 | 5200 |
| JPD1800 | 1800 | 947 | 1300 | 700 | 494 | 37 | 3700 | 3170*2540*1770 | 7800 |
