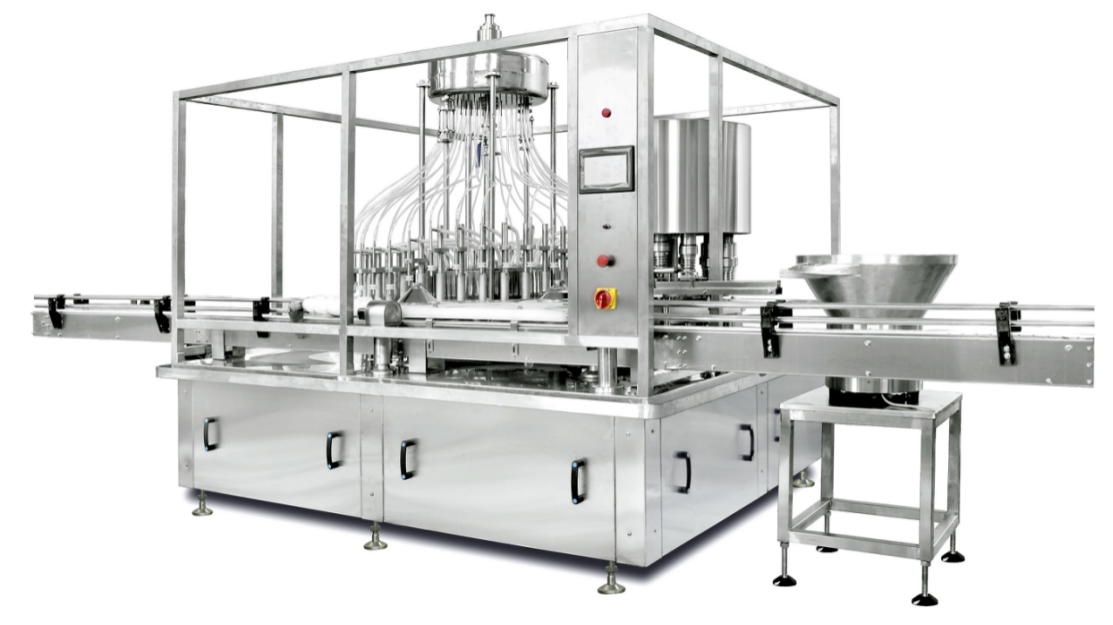

HYYG/16/8 constant pressure filling machine with Stoppering Machine

HYYG/16/8 constant pressure filling machine with Stoppering Machine

1.Main function of equipment

Automatic bottle feeding → filling →  rubber inserting stoppering  → automatic bottle outlet

2.Main technical parameters

1. Filling range: 250ml, 500ml

2. Filling accuracy: ≤±1.5%

3. Production capacity: 50-80 bottles/min

4. Power supply: 380V 50Hz; Other power supplies can be customized

5. Total power: 3.7kw

6. Compressed air pressure: 0.6-0.8MPa; Dosage 10-25L/min

7. Total weight: ≤1100kg

8. Overall dimensions: (L) 2500MM× (W) 1250MM× (H) 2350MM

3.Equipment introduction

The equipment is a constant pressure filling machine, which is suitable for filling and capping syrups, mixtures, cleansers, tinctures, wine agents or other solutions in pharmaceutical, biological medicine, special medical food, health products and other industries, and can also form production lines with other machines. This filling part adopts double chamber low vacuum constant pressure equal filling, especially suitable for plastic bottles, glass bottles, easy to produce foam, easy to leak, tightening strength, bottle easy to scratch and high production requirements of products.
