Liftable and simple mixing system

PRODUCT DETAIL

Liftable and simple mixing system

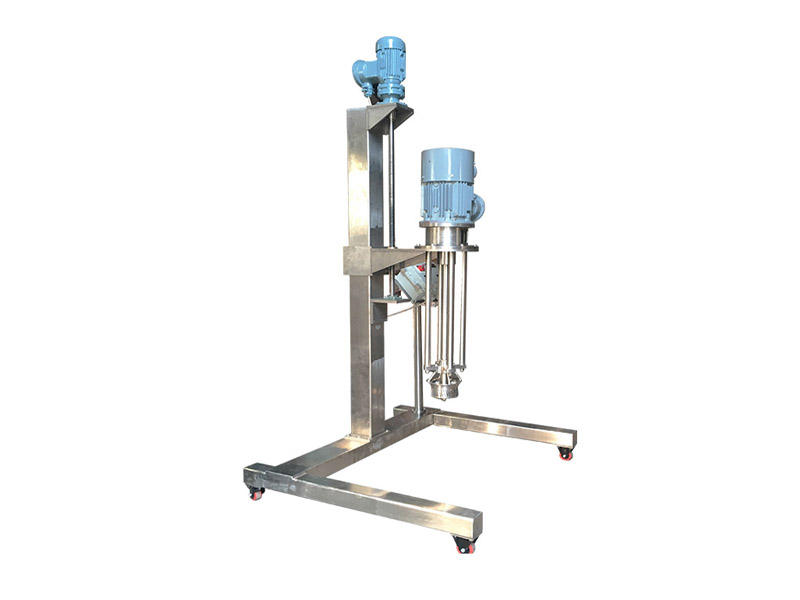

Portable lift high speed disc type dispenser mixer :

suitable for batch production, it is apply to all kind of liquid to pre-mix,disperse, color matching, etc.

Feature:
1.hydraulic lifting, the frame can turn around flexible
2.High Speed Dissolver can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
3.less air absorption during working
4.High Speed Dissolver can blend and dissolve product quickly
5.with inverter, various speed control, low noise and long-time continuous production
6.stainless steel mixing tank with clamp or belt is optional
7.motor can be explosion-proof, and the dispersing tank can be vacuum or seal
8.High Speed Dissolver can be hydraulic lift or pneumatic lift
9.Type: Floor type and platform type
10.one machine can serve several tanks

Model

Main Power (kw)

Rotation Speed (rpm)

Diameter of Disc (mm)

Stroke (mm)

Pump Power
(kw)

Weight
(kgs)


EBF-4

4

1440

100-200

700

0.75

700


EBF-7.5

7.5

1440

200-300

900

1.1

1000


EBF-11

11

1440

200-300

900

1.1

1000


EBF-15

15

1440

200-300

900

1.1

1000


EBF-18.5

18.5

1250

300-400

1200

2.2

1500


EBF-22

22

1250

300-400

1200

2.2

1500


EBF-37

37

1250

300-400

1200

2.2

1800


EBF-45

45

1250

400-500

1500

2.2

1800


EBF-55

55

1250

400-500

1500

2.2

2000
