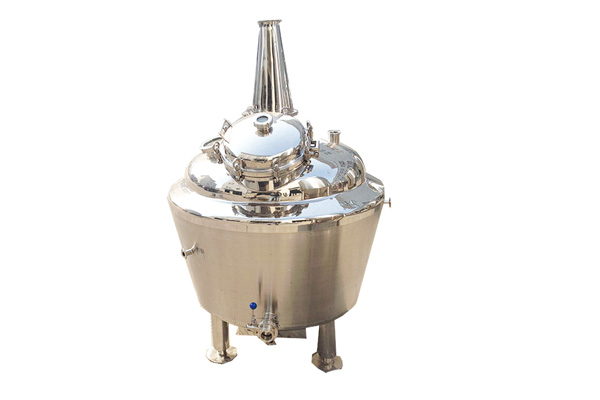

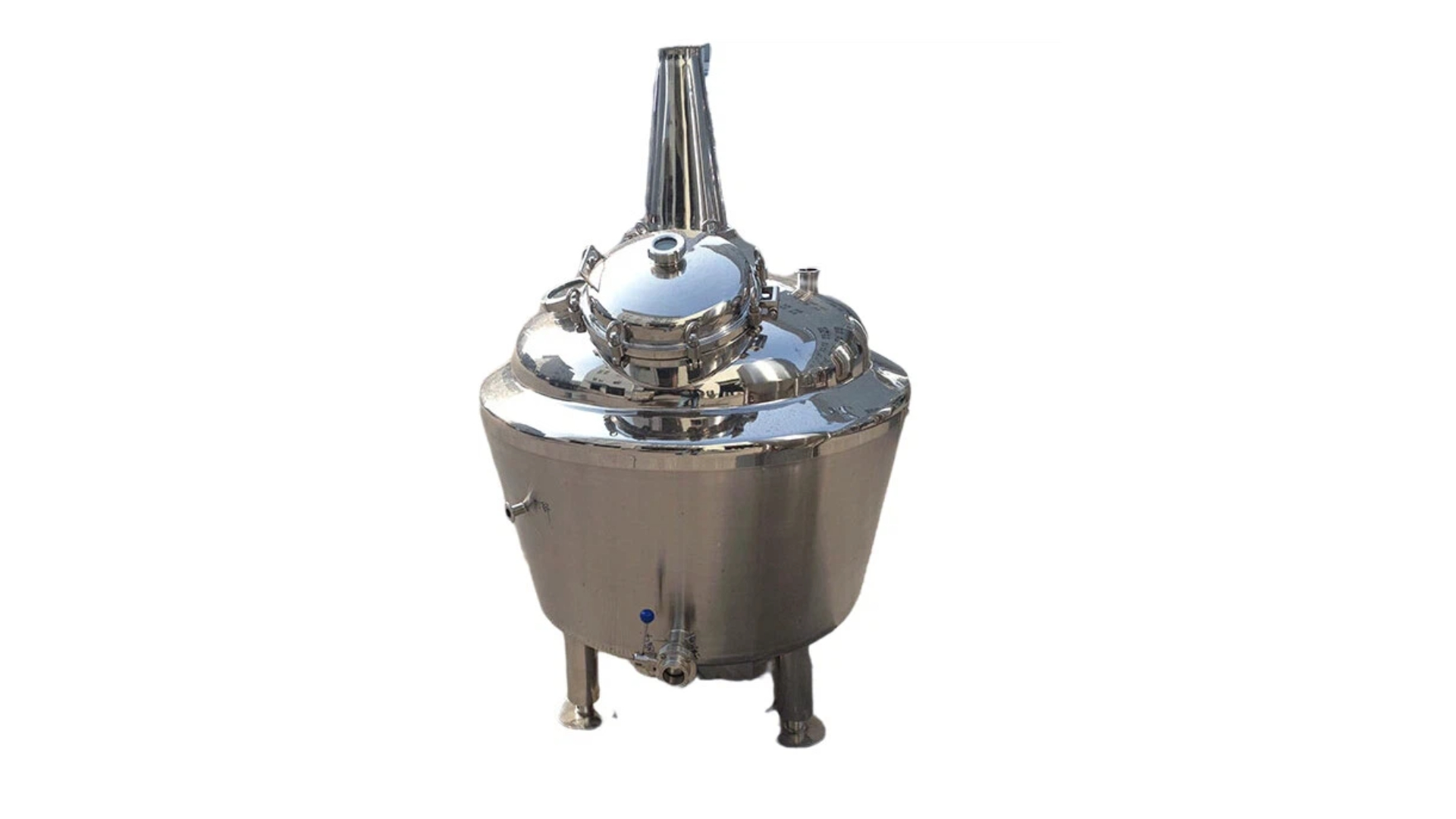

Still pot

PRODUCT DETAIL

1).still pot is a jacketed tank ,which can be heating by steam or electrical etc.
2)still pot material can use stainless steel material and copper material
3).still pot tank top can equipped with the agitator if the process necessary .
4).still pot tank capacity can make from 50L to 10000L .
5).still pot can connected with other equipments ,like the condenser ,collection tank etc to make a whole still pot system.which can be used to distill the rum ,vodka ,brandy ,gin etc.

Distillation unit is a new distillation and purification equipment developed by our company. It is used for distillation and purification of wine, blueberry wine, carambola wine, jujube wine, persimmon wine, apple wine and other fruit wine as well as liquor. It can be controlled manually to extract high-purity alcohol with reasonable temperature, volatility, and can separate the head, middle and tail as required. Its appearance is beautiful and durable. It is used by many wineries.

Red copper has a good resistance to the acid in wine. In the process of heating, copper forms insoluble copper salt with butyric acid, caproic acid, caprylic acid, solanoic acid, Yuedu acid, etc., so as to remove the acid with bad flavor and improve the quality of brandy. The distiller made of glass or stainless steel can not achieve the same effect. In addition, red copper has good thermal conductivity and is the catalyst of some esterification reactions.

Capacity	Height(cm)	Net weight(Kg)	Wall thickness	Bottom thickness
12L	69.5	6	1mm	1mm
20L	83.5	7.5	1mm	1mm
35L	95	9	1mm	1mm
60L	103.5	10	1mm	1mm
